MTF machine applies to camera modules test (include digital camera, webcam, mobile camera module...etc.). The function of machine has hight speed imaging grabbing, MTF(SFR) imaging processing, parameters setting and UI control. MTF machine is easy controlled for user and research in optical research institutions.
High Speed Imaging Grabbing：
MTF machine provide high speed imaging grabbing solution of client and testing platform quickly.
MTF Machine Control：
MTF machine provide three-axis direction of movement.
X axis and Y axis provide imaging adjustment automatically.
Z axis provides auto focus control.
MTF(SFR)capabilty of Image processing：
Auto Focus：
Step1：Focus and scan region-wide.
Step2：Focus and scan area(according to M point to set center)
Step3：To grab the clear imaging
MTF(SFR)： To grab clear imaging and calculate MTF/SFR if it auto focus.
MTF(Modulation Transfer Function) is a method of test camera module.
SFR(Spatial frequency response)：
SFR is the starter edition of MTF. We use SFR to analyze the imaging because the cost of MFT is expensive and translation of large data.(Reference right schematic)

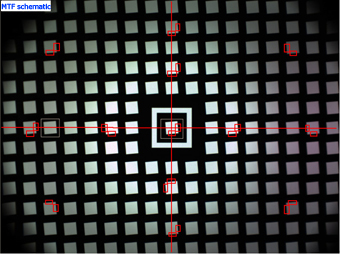

MTF mechine use SFR calculate for imaging nook,center and area.The basis of SFR to analyze the imaging.(Reference the schematic)
UI of Device Control：
Function
1.Parameters setting(test WOI).
2.Test Criteria.
3.Test stability.
4.Test result Output.
5.MTF(selftest).
Application：
